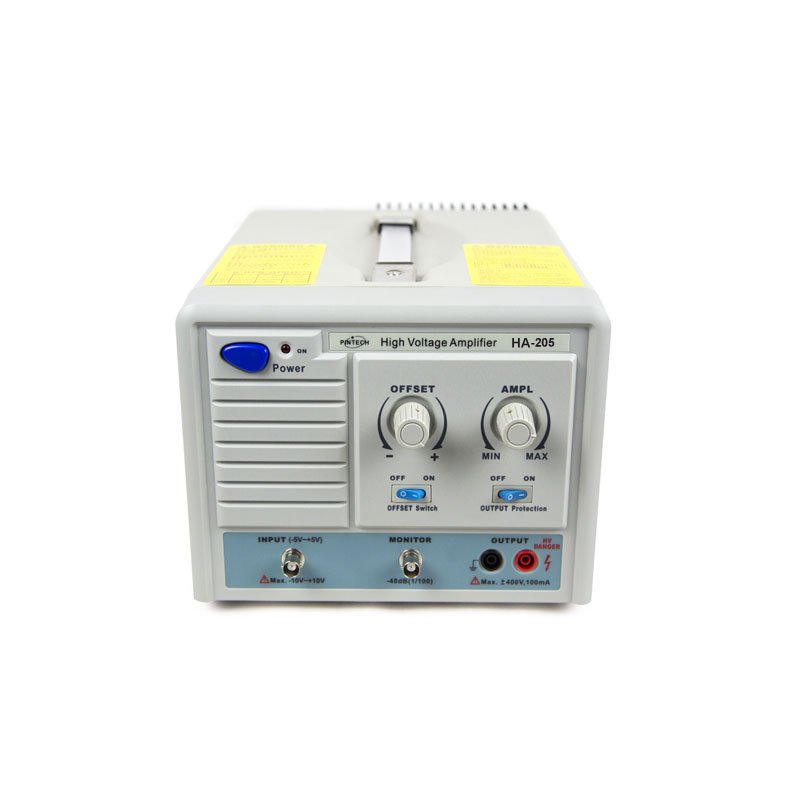

Pintech HA-205 (3MHz,170Vp-p) High Voltage Amplifier

Pintech HA-205



Product Introduction
Product Name : HA-205 (3MHz,170Vp-p) High Voltage Amplifier Short Description : 2500V/uS Super High Speed Model 170Vp-p (±85V DC) 900mAp-p (±450mA DC) Bandwidth : 3MHz / 100Vp-p

Pintech HA-205 Specification

Model HA-205
Output DC Voltage(Max.) ±85V
Output AC Voltage(Max.) 170Vp-p
DC Current(Max.) ±450mA
AC Current(Max.) 900mAp-p
Output Power(Max.) 76VA
Power Bandwidth 3MHz/100Vp-p
Slew Rate 2500V/us
Output Resistance (Protection SW OFF) 10O
Output Resistance (Protection SW ON) 500O/80watt
Safe Loading ?190O/170Vp-p
Input Voltage 0~20Vp-p
Voltage Gain 1~35
DC OFFEST 0 or± 80V
Monitor Output 100:1
