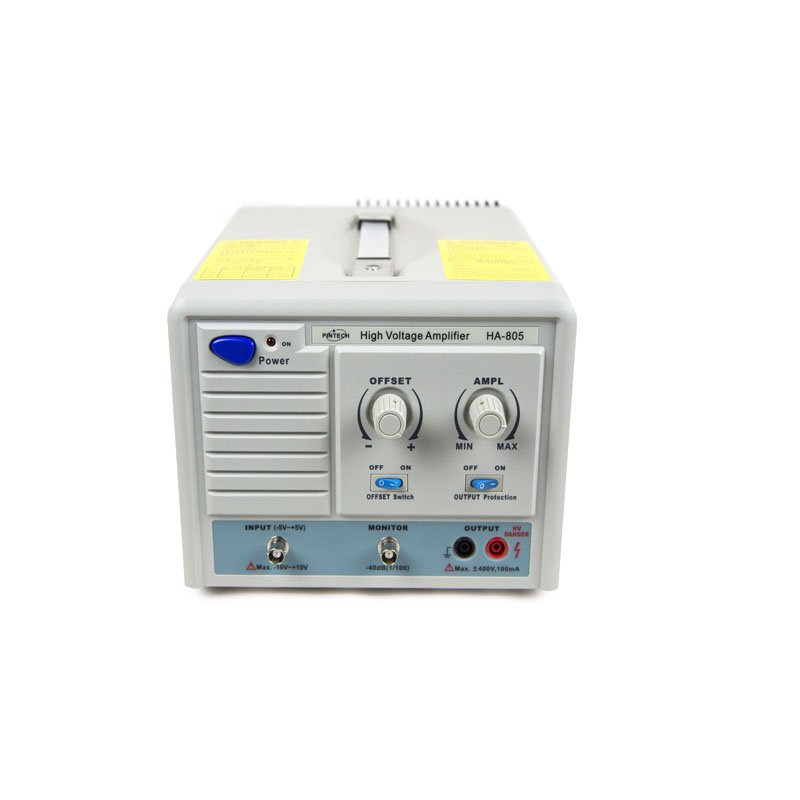

Pintech HA-805 (300KHz,800Vp-p) High Voltage Amplifier

Pintech HA-805



Product Introduction
Product Name : HA-805 (300KHz,800Vp-p) High Voltage Amplifier Short Description : 800Vp-p(±400V DC) 200mAp-p(±100mA DC) Bandwidth : ?300KHz(400Vp-p)

Pintech HA-805 Specification

Model HA-805
Output DC Voltage(Max.) ±400V
Output AC Voltage(Max.) 800Vp-p
DC Current(Max.) ±100mA
AC Current(Max.) 200mAp-p
Output Power(Max.) 80VA
Power Bandwidth 300KHz/400Vp-p
Slew Rate 300V/us
Output Resistance (Protection SW OFF) 100O
Output Resistance (Protection SW ON) 7.5KO/80watt
Safe Loading ?4KO/800Vp-p
Input Voltage 0~20Vp-p
Voltage Gain 1~180
DC OFFEST 0 or± 400V
Monitor Output 100:1
