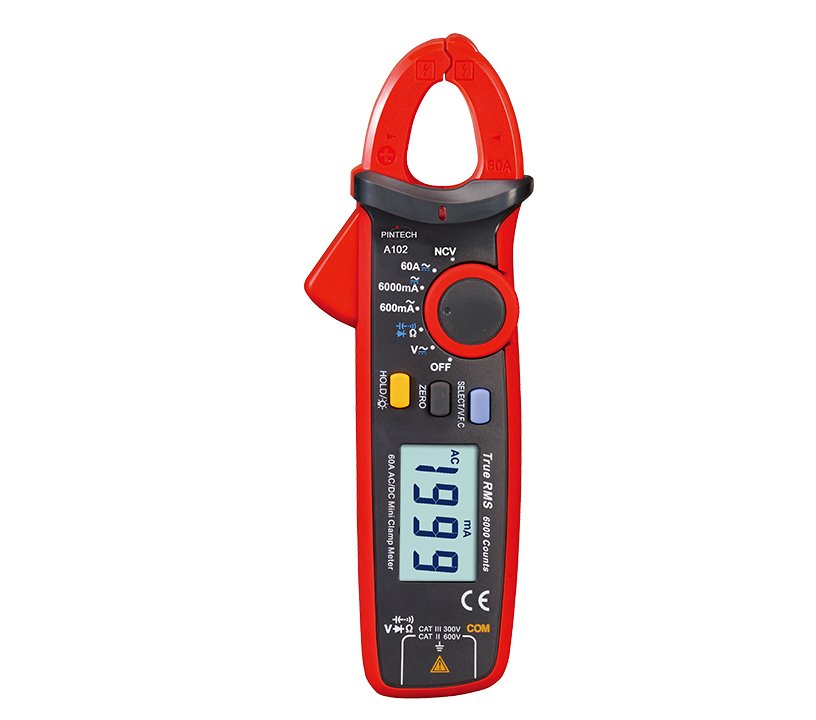

Pintech A102 60A Mini Clamp Meters

Pintech A102



Product Introduction
Product Name : A102 60A Mini Clamp Meters Short Description : Model Number : A102 Max. current : 60A Display Count : 6000 Auto Power Off : Around15 minutes

Pintech A102 Specification

Detailed description :
A102 series Mini Clamp Meters with thecharacteristics of high reliability, high security, automatic measurement rangeand miniaturization , which can accurately measure current signal; Product chipset up VFC startup mode, the inside will pass through a specific filtercircuit, filter the high frequency interference signal to ensure the accuracyof the measurement data. It is suitable for frequency conversion voltage,current with VFC, full range overload protection and unique appearance design,which becomes more superior performance of electrical instruments.
Specifications Range Best Accuracy
Model A102
AC Current (A) 600mA/6000mA/60A ±(1.5%+10)
DC Current (A) 6000mA/60A ±(2%+3)
AC Voltage(V) 6V/60V/600.0V/600V ±(0.8%+3)
DC Voltage(V) 600mV ±(0.7%+5)
6V/60V/600.0V/600V ±(0.7%+3)
Resistance(O) 600O/6KO/60KO/600KO/6MO/60MO ±(0.8%+2)
Capacitance(F) 6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF ±(4%+5)
Features
Display Count 6000
Auto Range v
True RMS v
Diode Around 3.0V v
VFC v
NCV v
Auto Power Off Around 15 minutes v
Continuity Buzzer v
Low Battery Indication =2.5V v
Data Storage v
Zero Mode v
LCD Backlight v
Input Protection v
Input Impedance for DCV =10MO v
General Characteristics
Power AAA 1.5V x 2
LCD Size 39.3mm x 26.5 mm
Product Color Red and Grey
Product Net Weight 170g
Product Size 175mm x 60mm x 33.5mm
Standard Accessories Batteries, Test Lead,Bag
Standard Individual Packing Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton 40PCs
Standard Carton Measurement 395mm x 390mm x 185mm
Standard Carton Gross Weight 13.72 Kg
