Pintech A105 2000A Digital Clamp Meters

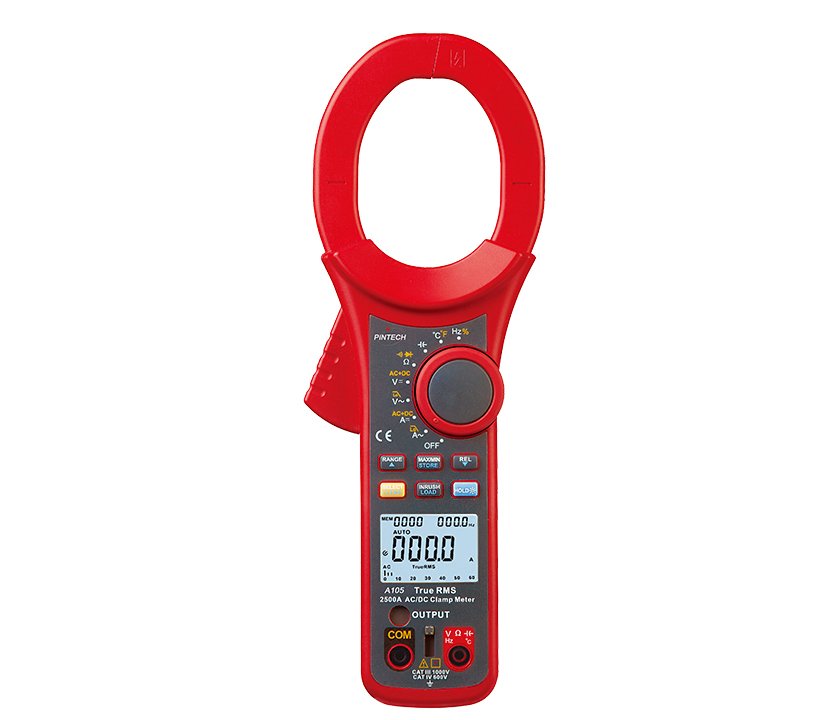

Pintech A105



Product Introduction
Product Name : A105 2000A Digital Clamp Meters Short Description : Model Number : A105 Max. current : 2000A Display Count : 6000 Jaw Capacity : 63mm

Pintech A105 Specification

Specifications Range Best Accuracy
Model A105
AC Current (A) 660A/2500A ±(1.5%+5)
DC Current(A) 660A/2500A ±(1.5%+5)
AC Voltage(V) 6V/60V/600V/1000V ±(1.2%+5)
DC Voltage(V) 6V/60V/600V/1000V ±(0.5%+2)
Resistance(O) 600O/6KO/60KO/600KO/6MO/60MO ±(1%+2)
Frequency(Hz) 60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/60MHz ±(3.0%+5)
Capacitance (F) 60nF/600nF/6uF/60uF/600uF/6000uF/60mF ±(0.1%+3)
Temperature(°C) -40°C ~ 1000°C ±(1.0%+8)
Temperature(°F) -40°F ~ 1832°F ±(1.0%+12)
Features
Display Count 6000
Auto Range v
Jaw Capacity 63mm
True RMS AC Voltage/ AC Current v
LCD Backlight v
Continuity Buzzer v
Diode v
Data Hold v
Duty Cycle 0.1%~99.9% v
Auto Power Off v
AC+DC v
Inrush Current AC Current v
Relative Mode
MAX/MIN v
Analogue Bar Graph 66
Continuity Buzzer v
Low Battery Indication v
Full Icon Display v
Input Impedance for DCV =10MO v
I-OUT Function v
General Characteristics
Power 9VBatteries (6LF22)
LCD Size 43mm X 30 mm
Product Color Red and Grey
Product Net Weight 725g
Product Size 298mm X 100mm X48mm
Standard Accessories TestLead ,Output Cable ,Thermocouple
Standard Individual Packing Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton 5PCs
Standard Carton Measurement 510mm×375mm×320mm
Standard Carton Gross Weight 12Kg

Feel free to contact us for any queries you may have.
