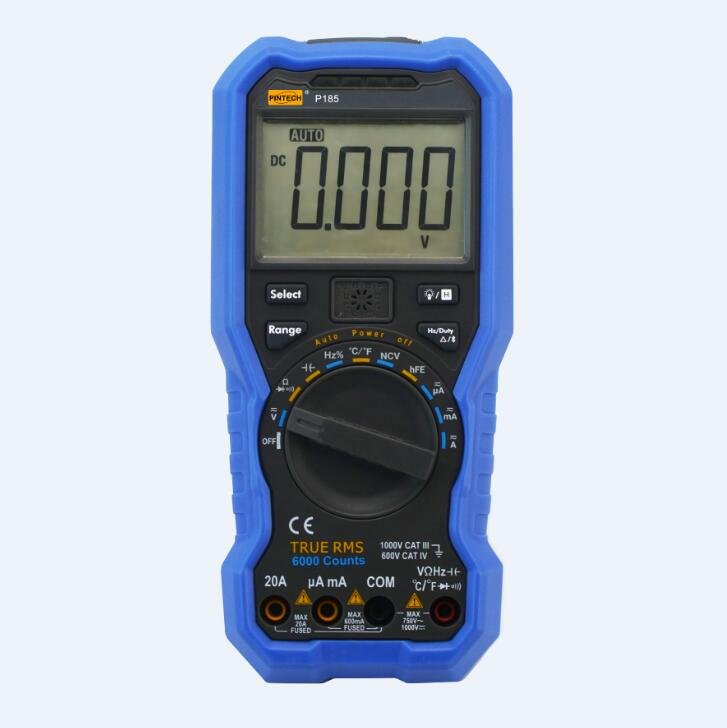

Pintech Digital Multimeter (DMM) P185 (1000V/20A)

3 5/6 bit resolution.Data Logger + Multimeter + Thermometer. True RMS test supported. BLE 4.0 wireless transmission, more stable,less power consumption. Build-in offline record function. Chart and Diagram mode helps to analyze the data tendency. Flashlight function lightens the darkness. Support NCV non-contact voltage sense. Widely supported on Android, iOS

Pintech P185 Specification

Basic function		Range	Min resolution	Accuracy
DC voltage	mV	600mV/6V/60V/600V	0.1 mV	±(0.5%+2 dig)
DC voltage	V	1000V	1 V	±(0.8%+2 dig)
AC voltage	mV	600mV	0.1 mV	±(2%+5dig)
	V	6V/60V/600V	1 mV	±(0.8%+3dig)
	V	750V	1 V	±(1%+3dig)
DC current	µA	600uA/6000µA	0.1µA	±(0.8%+2dig)
	mA	60mA/600mA	0.01mA	±(0.8%+2dig)
	A	20A	0.01A	±(1.2%+3dig)
AC current	µA	600uA/6000µA	0.01µA	±(1%+3dig)
	mA	60mA/600mA	0.01mA	±(1%+3dig)
	A	20A	0.01A	±(1.5%+3dig)
Resistance		600O/6kO/60kO/600kO/6MO	0.1O	±(0.8%+2dig)
Resistance		60MO	0.01 MO	±(2%+3dig)
Capacitance		60nF/600nF/6µF/60µF	0.01nF	±(2.5%+3dig)
Capacitance		600µF/6mF/60mF	0.1µF	±(3%+5dig)
Frequency		9.999Hz/99,99Hz/999.9Hz/9.999kHz/99.99kHz/99.9kHz/9.999MHz	0.001Hz	±(0.8%+2dig)
Duty ratio		0.1%~99.9%(typical value:Vrms=1V,f=1kHz)	0.1%	±(1.2%+3dig)
Duty ratio		0.1%~99.9%(=1kHz)	0.1%	±(2.5%+3dig)
Temperature		- 50 ?~400?	1?	±(2.5%+3dig)
Temperature		-58 ? ~ 752 ?	1?	±(4.5%+5dig)
The largest reading		5999
Frequency response		(20 - 1000) Hz
Numerical conversion rate		3times/Second
General features
The bluetooth communication		v	Automatic range	v
True RMS		v	LCD backlight	v
Diode/triode test		v	Automatic manual range selection	v
The flashlight		v	Input protection	v
Automatic shutdown		v	Input impedance	=10MO
Break a buzzer		v	Safety norms	600V CAT?,1000V CAT?
Battery low voltage indicator		v	NCV	v
Digital keep		v	Dimension	190mm90mm56mm
Relative measurement		v	Weight	300g
