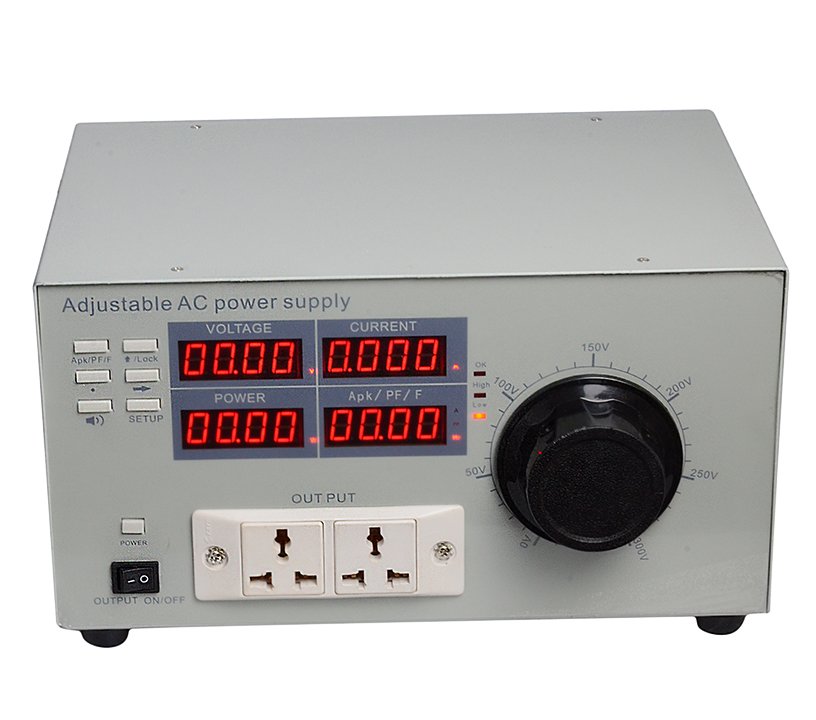

Pintech APA5001AC POWER SUPPLY

APA5001 is a new adjustable AC power supply, It combines electric parameter tester and voltage regulator’s function,easy operating,small size are its characteristic. Engineers can use it directly, it is safe, reliable and convenient.

Pintech APA5001AC Specification

Model	APA5001
Input voltage	AC 220V
Output voltage	AC 0-300V Adjustable
Power	1000VA
Display	V/A/P/PF/F/Apk
Display accuracy	0.5%
Upper/lower setting	Yes
Output switch	Yes
Sound alarm	Yes
Size	320220170mm
Weight	10KG
Measure item	Range	Accuracy
Ture rms Voltage	1.00 V ~300.0V(auto range)	±(0.5%reading+0.1%range+3words)
Ture rms current	0.1 mA ~3000mA(auto range)	±(0.5%reading+0.1%range+3words)
Peak current	1 mA ~3500mA(auto range)	±(0.5%reading+0.1%range+3words)
Power	0.01 W ~900W	±(0.5%reading+0.1%range+3words)
Power factor	0.000~1.000	±(0.5%+0.001/reading+3bytes)
Input frequency	45Hz~65Hz	±0.5Hz
Power supply	220V±10%
Power frequency	45Hz~65Hz
Max. power	1000VA
Size	320mm(W)170mm(H)220mm(D)
Weight	About 10KG
