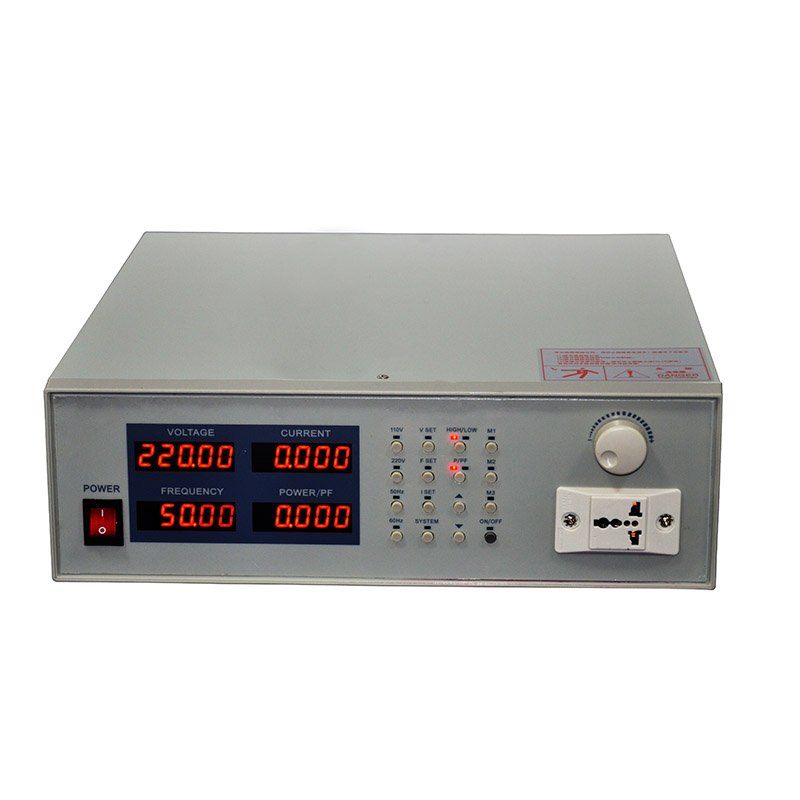

Pintech APA5005 programmable AC power supply

Pintech APA5005



APA5005 series programmable AC power supply, fast reaction speed, stable performance, easy to operate,four window five digital display, voltage, frequency, fast key combination features, digital encoder adjustment makes it more convenient and durable

Pintech APA5005 Specification

Model APA5005A
Power 500VA
Working SPWM( Sinusoidal Pulse Width Modulation)
INPUT
Phase 1f2W
Voltage 220V±10%
Frequency 47Hz - 63Hz
OUTPUT
Phase 1f2W
Voltage 0-150VAC / 0-300VAC AUTO
Frequency 45-250Hz(0.1Step)
Maximum Current L=120V 4.2A
H=240V 2.1A
Load Regulation 1%
T.H.D 2%(low range:120V;high range:240V,with pure resistive load)
Fre Regulation 0.01%
Display Voltage:Vrms,Current:Arms,Frequency:Fre,Power:Wattage,power factor:PF
Voltage Resolution 0.01V
Fre Resolution 0.01Hz
Current Resolution 0.001A
Memory M1 (V_F_A)?M2 (V_F_A)?M3 (V_F_A)
Accuracy Voltage ±0.5%FS+5dgt
Current ±0.5%FS+5dgt
Frequency ±0.01%FS+5dgt
Power ±0.5%FS+5dgt
Setting accuracy Voltage ±1%FS
Frequency ±0.1%FS
Interface RS232C
I-LIM Set 0-Max Current(Max. current:max. power/240V.P/240)
Output protection Over Current Over Temp Over Load Short Circuit
Weight(Kg) 15
Dimension W×H×D(mm) 430×133×480
Environment 0-40? 20-80%RH
