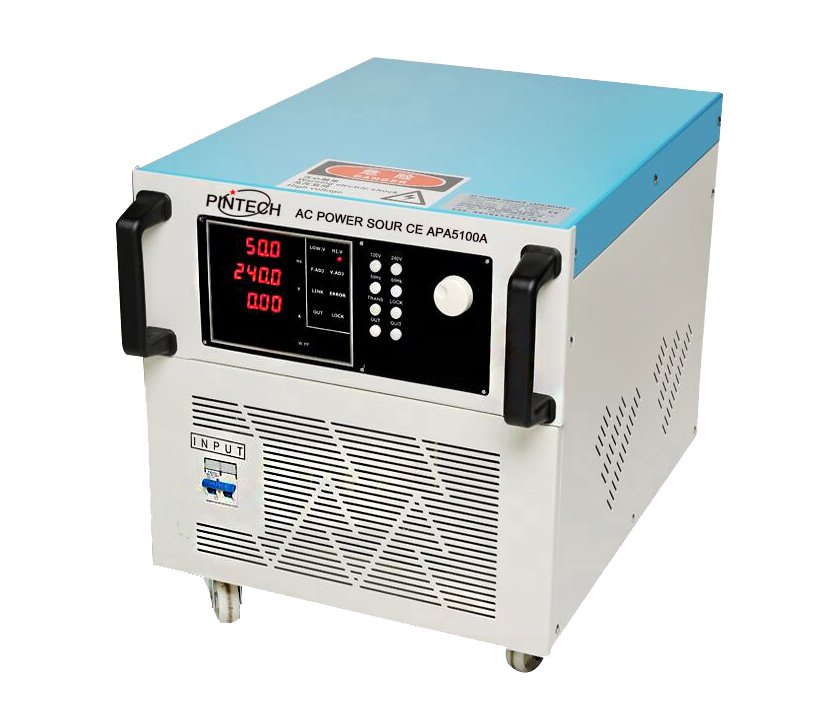

Pintech APA5100A single phase high power AC power supply

Pintech APA5100A



IGBT/SPWM Pulse Wave width adjustment mode Terminal Voltage feedback compensation function ensures no error in test power can set the waveform starting angle (0-359°) , with synchronous source signal interface Select-able voltage Analog (0-5V) or current analog (4-20mA) control of power output Using a single chip microcomputer (d/a circuit) to collect voltage and current waveform data directly interface rs232/rs485 is optional, communication with computer CPU design to control the logic circuit opening and closing,one to one drive,is good f

Pintech APA5100A Specification

Single phase
Model APA5105A APA5100A APA5115A APA5120A APA5130A APA5150A APA5180A APA51100A
Output capacity 5KVA 10KVA 15KVA 20KVA 30KVA 50KVA 80KVA 100KVA
Making way IGBT/SPWM Pulse Wave width adjustment mode
Input power 1?2W+G220V/110V±10%50Hz/60Hz±5% 3?4W+G380V/220V±10%50Hz/60Hz±5%
Output Frequency 50,60,45-400HZ optional
Frequency stability =0.01%
Output Voltage 0-150V/0-300V
Output Current 42/21A 84/42A 126/63A 168/84A 250/125A 420/210A 666/333A 840/420A
Load Regulation =1%
waveform distortion =1%(full load2%)
Ammeter LCD Module Voltage,frequency,power,power factor,current,peak current,temperature,power capacitor,time,phase angle, impedance value and current voltage real-time curve
Protective device Overload,over current,over temperature,short circuit protection,alarm device
Weight (KG) 45 150 190 240 350 450 600 780
Dimension (MM)(W*H*D) 430*200*500 340*490*700 430*580*700 600*1260*700 750*1500*850 900*1780*950
Working environment Environment temperature 0-40?,Humidity10-90%
