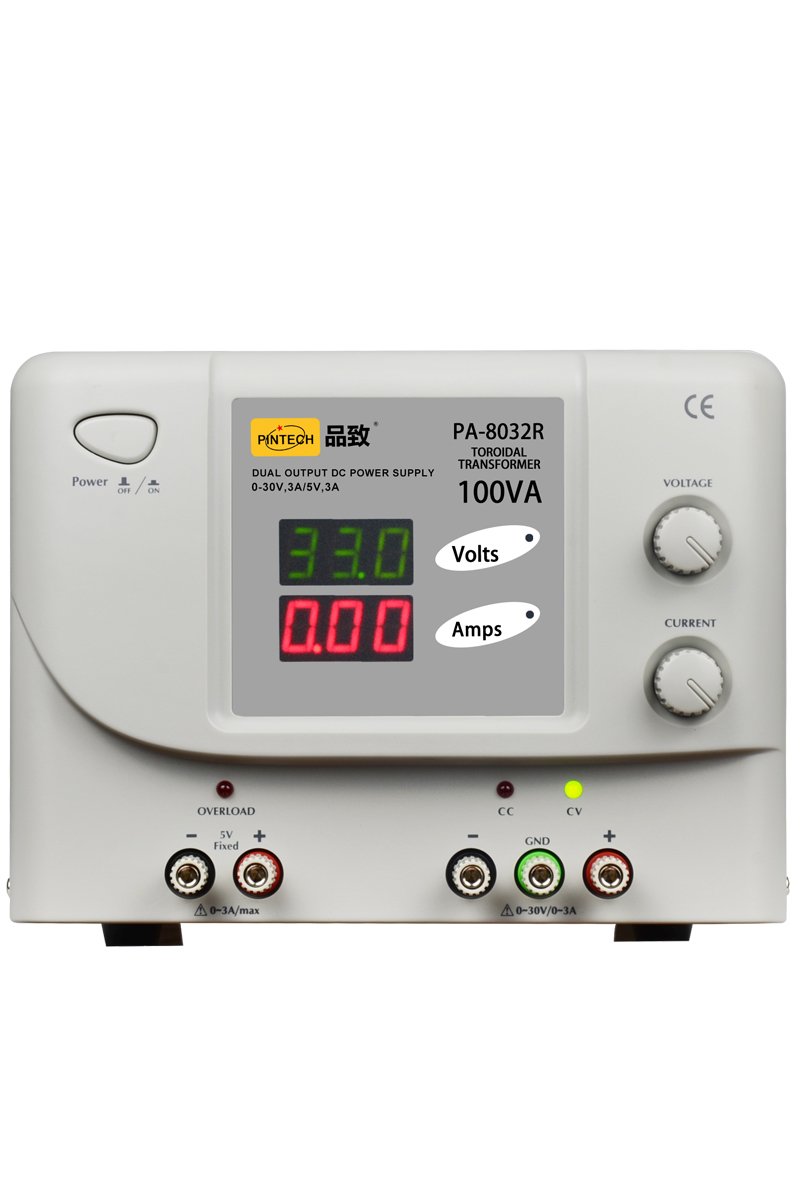

Pintech DC power supply PA-8032R ( 30V/3A + 5V/3A Toroidal Transformer ,dual display)
|
Model PA-8032R Power Transformer Toroidal Transformer Max. Continual Output Power 105VA Max. Raised Temperature < 38°C Independent Output 0~30V/0~3A, 5V Fixed / 0~3A; Dual Output Constant Voltage Characteristic Load Regulation ±0.05%+2mV Line Regulation ±0.05%+2mV Ripple & Noise < 0.3mVrms Constant Current Characteristic Load Regulation <15mA Line Regulation ±0.05%+2mA Ripple & Noise < 2.0mArms 5V Fixed Output Regulation Line Regulation < 5mV, Load Regulation<10mV Ripple & Noise < 1mVrms Voltage Accuracy 5V ± 0.25V Max. Output Current 3A Display Voltage 3 Digits 0.56" Gree
|
|
Pintech PA-8032R Specification
Model | PA-8032R | Power Transformer | Toroidal Transformer | Max. Continual Output Power | 105VA | Max. Raised Temperature | < 38°C | Independent Output | 0~30V/0~3A, 5V Fixed / 0~3A; Dual Output | Constant Voltage Characteristic | Load Regulation | ±0.05%+2mV | | Line Regulation | ±0.05%+2mV | Ripple & Noise | < 0.3mVrms | Constant Current Characteristic | Load Regulation | <15mA | | Line Regulation | ±0.05%+2mA | Ripple & Noise | < 2.0mArms | | 5V Fixed Output | Regulation | Line Regulation < 5mV, Load Regulation<10mV | Ripple & Noise | < 1mVrms | Voltage Accuracy | 5V ± 0.25V | Max. Output Current | 3A | | Display | Voltage | 3 Digits 0.56" Green LED | Current | 3 Digits 0.56" Red LED | Accuracy | 0.1% + 2 digits | | General | Power Source | ACV 115/230 ± 10%, 50/60Hz | Dimensions( W x H x D): | 230 x 170 x 310 mm | Weight | 5.7kg |
|
|
