Pintech DC power supply PA-8063R ( 32V/6A x 2 + 5V/3A ; 3Digits + 4 Display )

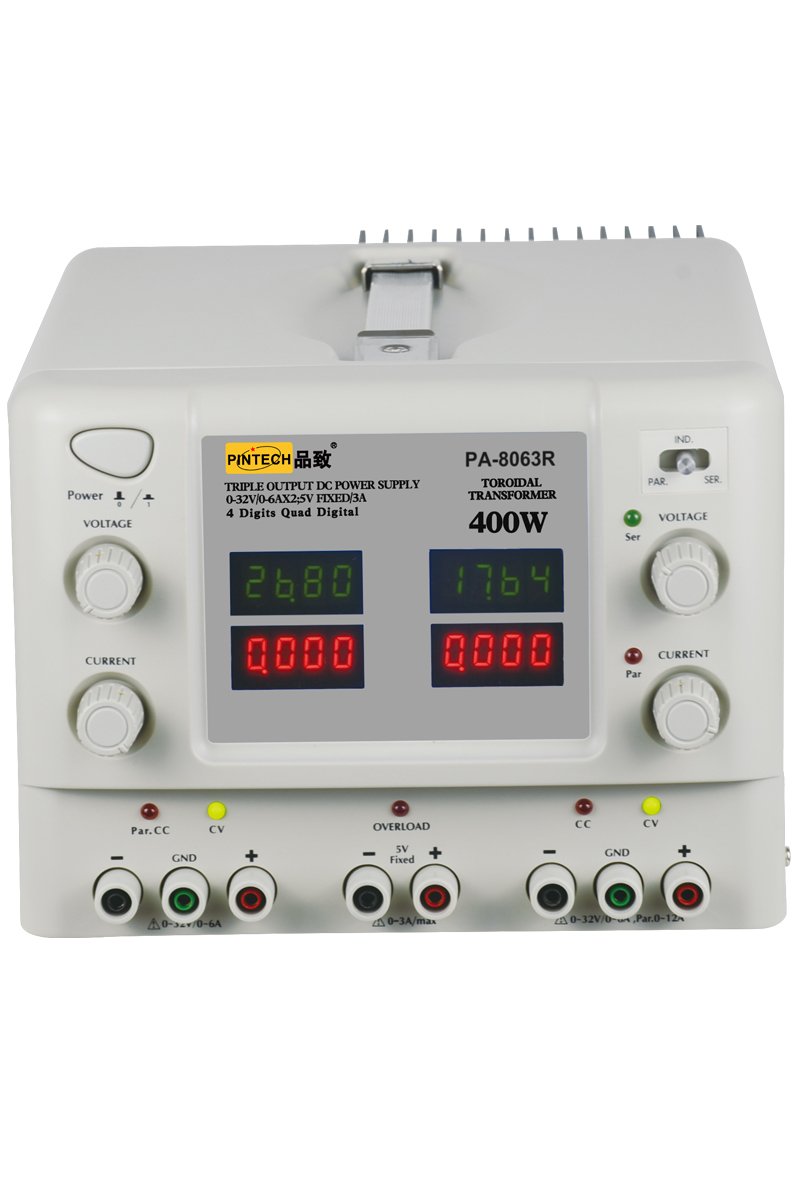

Pintech PA-8063R



Use Toroidal Transformer. Low EMI & High EMS. Triple output, 0-32V/0-6A X2 and 5V/3A .Max. 400Watts Tracking operation. Max. output 64V/6A on tracking series or 32V/12A on tracking parallel. 4 display, Green LED shows Voltage and Red LRD shows Current. Easy to read. Compact design. G.W. 9Kgs only. Easy to handle. The resolution of PW-3063R as high as 0.1v and 0.01A. Very low Ripple & Noise, less than 0.4mVrms. Very suit for precise measurement.

Pintech PA-8063R Specification

Model

PA-8063R

Power Transformer

Toroidal Transformer

Max. Continual Output Power

400VA

Max. Raised Temperature

< 45°C

Independent Output

0~32V/0~6A x 2, 5V Fixed / 0~3A; Triple output

Constant Voltage Characteristic

Regulation

Line <0.05%+3mV, Load <0.05%+5mv

Ripple & Noise

< 0.4mVrms

Temperature coefficient

< 300PPM/°C

Output switch

Build-in(slave & master)

Constant Current Characteristic

Regulation

Line <0.2%+2mA, Load <0.2%+3mA

Ripple & Noise

< 2.5mArms

Current limit switch

Build-in c - c Current limit switch(slave & master)

5V Fixed Output

Regulation

Line < 5mV,Load <10mV

Ripple & Noise

< 1.5mVrms

Voltage Accuracy

5V ± 0.25V

Max. Output Current

3A

Tracking Operation

Parallel Regulation

Line < 0.01%+3mV, Load < 0.01%+5mV

Series+and-Supply Regulation

Line < 0.01%+3mV, Load < 0.01%+5mV

Slave tracking error <0.5%+digital of the master 2

Series Single Supply Regulation

Line <0.01%+5mA, Load <300mV

Display

Voltage

4 Digits 0.36" Green LED

Current

4 Digits 0.36" Red LED

Accuracy

0.05% + 3 Digits

General

Power source

ACV 115/230 ± 10%, 50/60Hz

Dimension ( W x H x D):

230 x 170 x 310 mm

Weight

9.5kg
