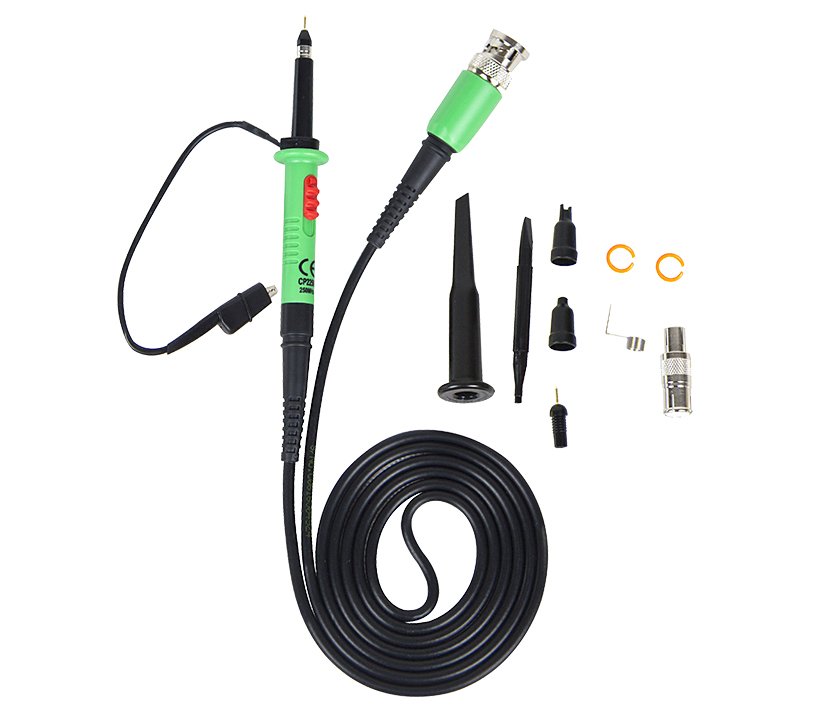

Pintech CP-2250 (250MHz,600V) Oscilloscope Probe

Product Introduction
Product Name : CP-2250 (250MHz,600V) Oscilloscope Probe Short Description : Working Voltage : 400V dc 600V peak 200V rms Band width : 250MHz Division Ratio : X1, X10 Switchable

Pintech CP-2250 Specification

?10 Range
Division Ratio	10:1
Bandwidth	DC~250MHz
Rise Time	1.4nS
Input Resistance	10MO
Input Capacitor	About 17PF
Compensation Range	10~35PF
Operating Voltage	600V DC+AC peak
?1 Range
Division Rtio	1:1
Band Width	DC~6MHz
Rise Time	58nS
Input Resistance	1MO
Input Capacitor	About 47PF
Operating Voltage	300V DC+AC peak
General
DC Accuracy	?1%
Temp.Coefficient	?200ppm/?
Cable Length	1.2M
Operating Temp.	0?~+50? or less 85%RH(35?)
Storage Temp.	-20?~+70? or less 90%RH
Weight	90g

Feel free to contact us for any queries you may have.
