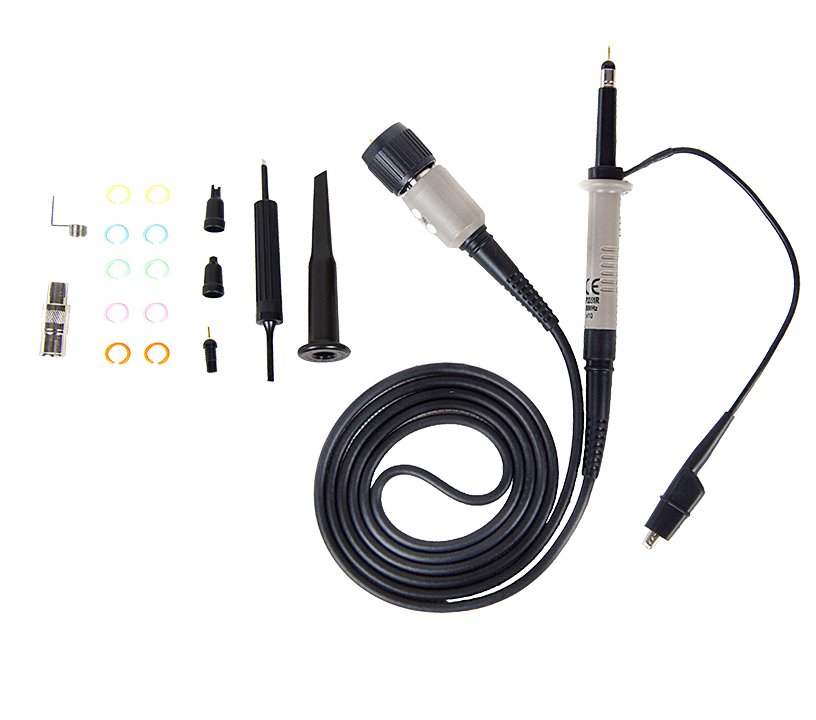

Pintech CP-3351R (350MHz,600V) Oscilloscope Probe

Pintech CP-3351R



Product Introduction
Product Name : CP-3351R (350MHz,600V) Oscilloscope Probe Short Description : Bandwidth 350MHz Read out Function, X10 FIX Fix 10MΩ Input Impedance.

Pintech CP-3351R Specification

Model CP-3351R
Attenuation ratio 10:1（fixed）
Bandwidth DC~350MHz
Rise time 1.0nS
Input impedance 10 MΩ(when connect with 1MΩ oscilloscope)
Input capacitor about 16PF
Compensation Range 10~35PF
Working voltage 600V DC+AC peak
DC accuracy ≦1%
Temperature ≦200ppm/℃
Cable lenght about 1.2M
Max. consumption ≦0.8watt
Working temperature -10℃~+55℃低于85%RH（35℃时）
Storage temperature -20℃~+70℃低于90%RH
Net weight 93g

Feel free to contact us for any queries you may have.
