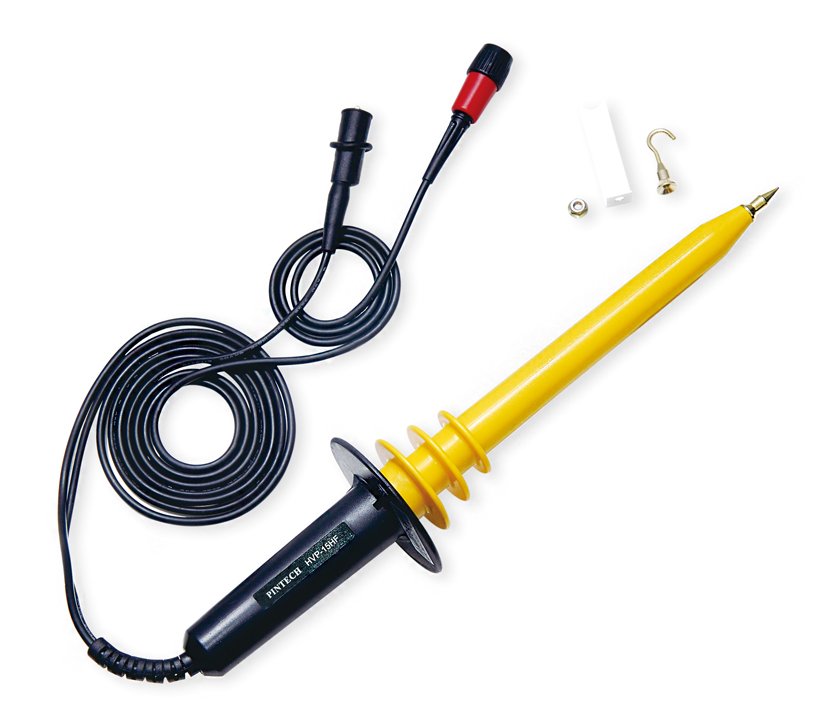

Pintech HVP-15HF (15KV.50MHz) high voltage probe

HVP-15HF (15KV.50MHz) high voltage probe MAX. WORKING VOLTAGE DC : 0~15 KV AC : pulse ? 30 KV peak to peak AC : Sine wave ?10 KV rms SIGNAL / NOISE ? 60 d B (1KHz) , ? 50 d B (1MHz) BANDWIDTH : DC~50 MHz (-3d B) DIVISION RATIO 1 : 1000 RISE TIME ? 7 nS

Pintech HVP-15HF Specification

MAX. WORKING VOLTAGE	DC: 0~15 KV
	AC : pulse ? 30 KV peak to peak
	AC: Sine wave ?10 KV rms
SIGNAL / NOISE	? 60 d B (1KHz), ? 50 d B (1MHz)
BANDWIDTH	DC~50 MHz (-3d B)
DIVISION RATIO	1:1000
RISE TIME	? 7 nS
INPUT RESISTANCE	100 MO ± 1%
INPUT CAPACITANCE	3.0 PF ± 0.5 PF
COMPENSATION RAGE	5 PF~50 PF
CABLE LENGTH	2.0 METER (±0.2 M)
TEMPERATURE COFFICIENT	? 200 PPM / ?
ACCURACY	DC: ±3%
ACCURACY	AC:±3%(1KHz/1KV/1KHz RMS)-3dB: 0~ 50MHz
OPERATING TEMPER ATURE	0~ 0.5 ?
STORAGE TEMPERATURE	-20 ~ +70 ?
WEIGHT / VOLUME	250 g / f 75× 340 mm
