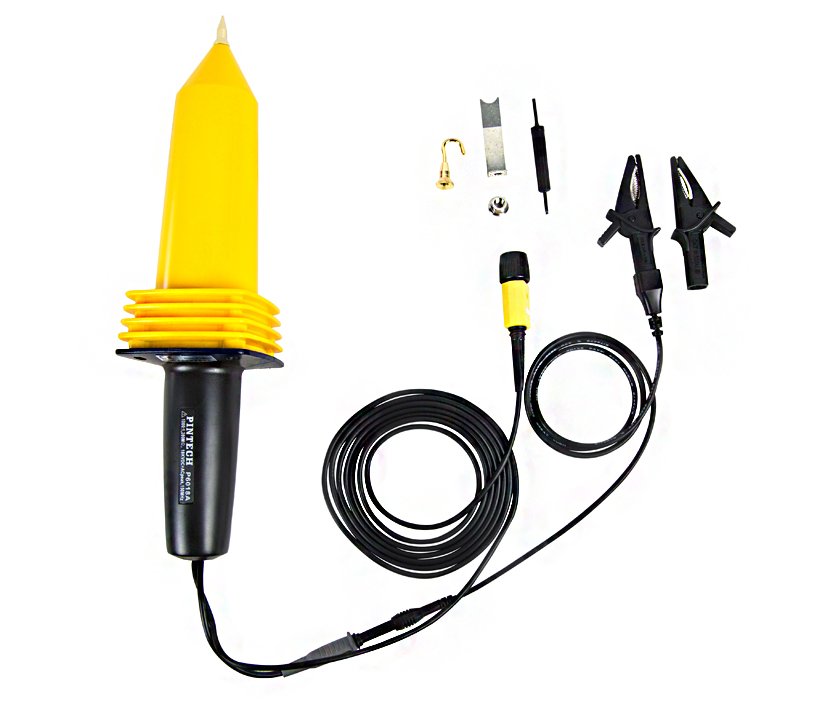

Pintech P6018A (18KV,150MHz) high-voltage probe

Pintech P6018A



P6018A (18KV,150MHz)high-voltage probe Attenuation ratio : 1000 : 1 200MO//1.5PF Impedance. Max. 18KV DC,AC 12KVrms

Pintech P6018A Specification

Model P6018A
Division Ratio 1000:1
Pluse voltage 12KVp-p
Input Resistance 200MO
Input Capacitor 1.5 PF
Max. DC 18KV CAT ?
Max. AC RMS. 12KV CAT ?
Max. Loading Current 90uA
Band Width DC~150MHz(-3dB)
Rise Time 3.5 ns
Signal /Noise >60dB at 1KHz; >50dB at 1MHz
DCV Accuracy ?3% Full Range
ACV Accuracy ?3% at 1KHz
Temp. Coefficient ?200 PPM/?
Compensation Range 10PF~35PF
Safety Meets EN61010-031CAT?
Cable Length 2Mą0.2M
Operation Temp. -10~55?
Humidity 85%RH or less(at 35?)
Storage Temp. -20~70?
Color: Handel/Body Black/ Yallow
Weight /Volume 460g/80(W)×80(H) ×320(L)mm

Feel free to contact us for any queries you may have.
