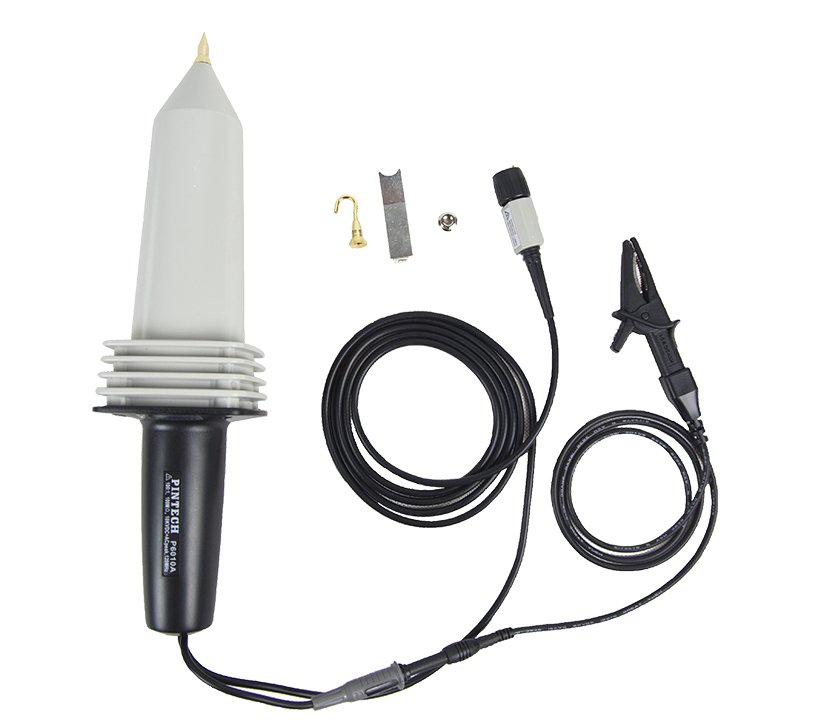

Pintech P6028A (28KV.200MHz) high voltage probe

P6028A (28KV.200MHz) high voltage probe Division Ratio 1000 : 1 Input Resistance 500MO Input Capacitor 1.7 PF Max. DC+AC pack 28KV CAT ? Max. AC RMS. 20KV CAT ? Max. Loading Current 56uA

Pintech P6028A Specification

Model	P6028A
Division Ratio	1000:1
Pulse voltage	20KVp-p
Input Resistance	500MO
Input Capacitor	1.7 PF
Max. DC	28KV CAT ?
Max. AC RMS.	20KV CAT ?
Max. Loading Current	56uA
Band Width	DC~200MHz(-3dB)
Rise Time	1.8 ns
Signal /Noise	>60dB at 1KHz; >50dB at 1MHz
DCV Accuracy	?3% Full Range
ACV Accuracy	?3% at 1KHz
Temp. Coefficient	?200 PPM/?
Compensation Range	10PF~35PF
Safety	Meets EN61010-031CAT?
Cable Length	2M±0.2M
Operation Temp.	-10~55?
Humidity	85%RH or less(at 35?)
Storage Temp.	-20~70?
Color: Handel/Body	Black/ Dark Gray
Weight /Volume	460g/80(W)×80(H) ×320(L)mm
