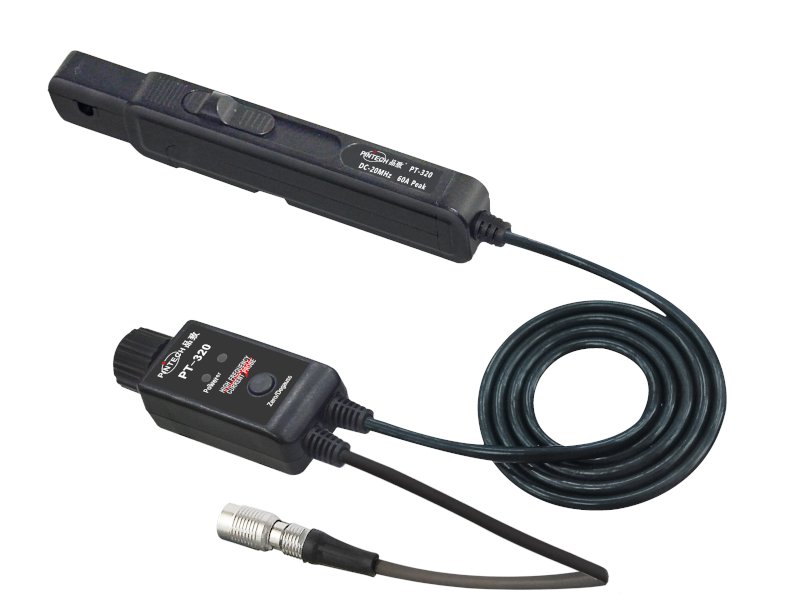

Pintech PT-320 (20MHz,60A) High frequency current probe

Pintech PT-320



Features : Easy-to-Use and Accurate AC/DC Current Measurements;DC-20 MHz Bandwidth,Core Jaw Diameter of 5 mm (0.2 in.) ; High Accuracy with Typically Less than 1% DC Gain Error;Split-core Construction allows Easy Circuit Connection;Low Noise and DC Drift. Applications : Power supplies, semiconductor devices; inverters/converters, electronic ballasts; industrial/consumer electronics, mobile communications; motor drives, transportation systems, propagation delay measurements, etc.

Pintech PT-320 Specification

Model PT-320
Bandwidth DC-20MHz
Max. current 60A
Max. RMS current 20A RMS
Min.current 20mA
Accuracy 1%(±5mV)
Noise =6mA RMS
Rise time =17.5 ns
Match oscillosocpe input impedance 1MO
Coupling AC/DC
Length 1.48m
Clamp dia. 5mm
Conversion ratio 0.1V/A

Feel free to contact us for any queries you may have.
