Pintech PT-5160M (70MHz,16KV) high sensitivity high voltage differential probe

Pintech PT-5160M

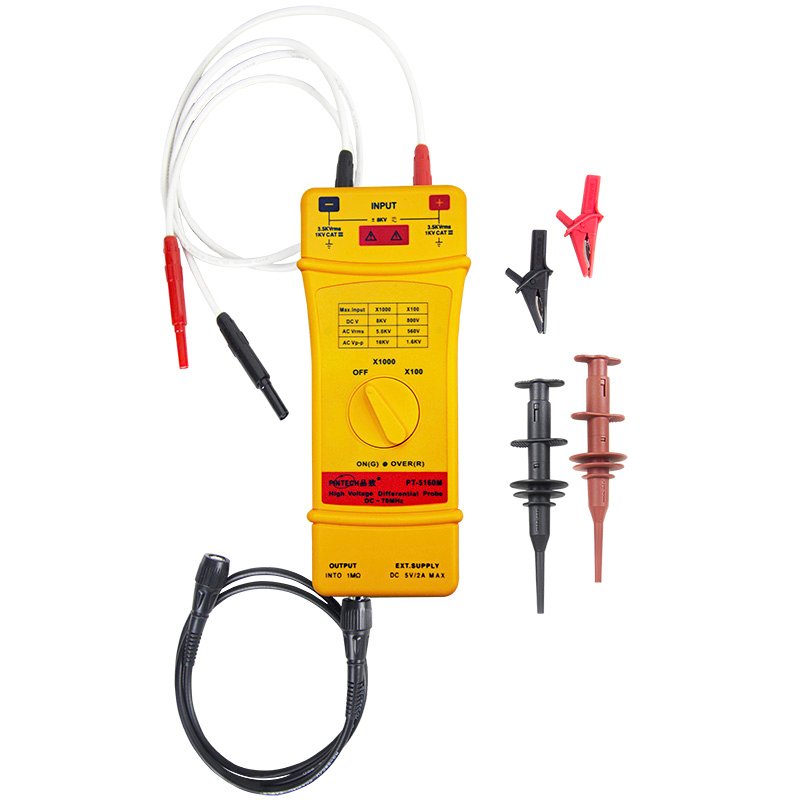

PT-5160M (70MHz,16KV) differential voltage probe provides a safety means of measuring floating potentials for all models of oscilloscopes incomplete safety. It"s very helpful for high voltage testing.

Pintech PT-5160M Specification

Model PT-5160M
Bandwidth(-3dB) DC-70MHz
Rise time 5ns
Attenuation ratio X100,x1000
Accuracy ±2%
Input voltage range(Vp-p) 1.6KVp-p for x100
16KVp-p for x1000
Input voltage range(Vrms / DC) 565Vrms or±800V DC for x100
5650Vrms or±8KV DC for x1000
Input impedance(single end to the ground) 10MO//10pF
Output voltage =±8V
Output impedance(choose 1MO for oscilloscope input impedance) 50O
Rejection Rate on Common Mode 60Hz:>80dB;100Hz:>60dB;1MHz:>50dB
Power supply 5V DC power supply
Consumption Max. 2A/5V DC
