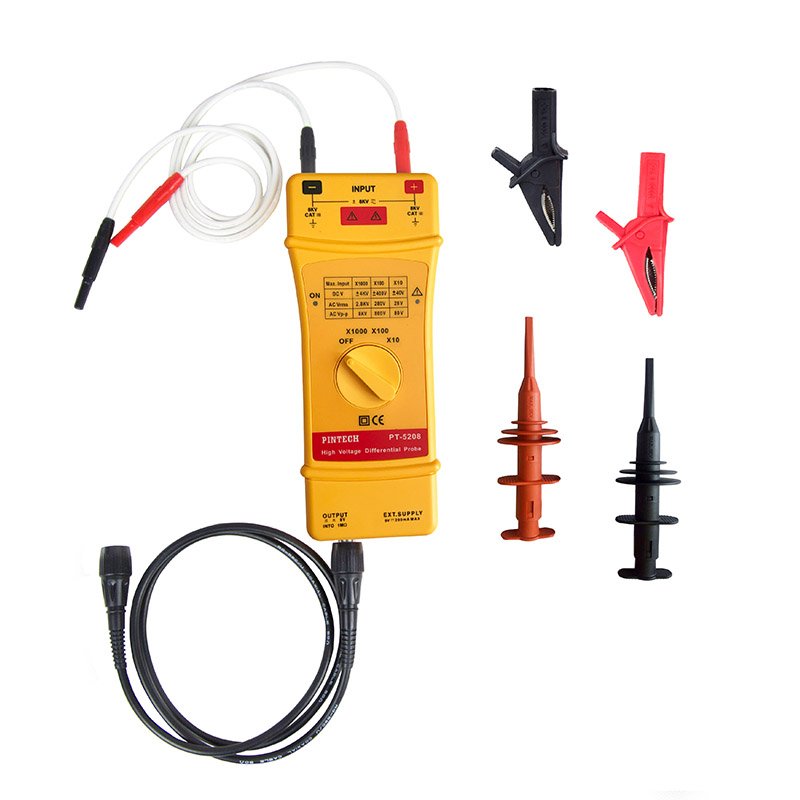

Pintech PT-5208 (100MHz,8KVp-p) Differential probe

Pintech PT-5208



Overload protection differential probe PT-5208 Max. Measuring voltage : ±4KV DC or 8KV p-p or AC 2.8KVrms Bandwidth : DC-100MHz Input impedance : 20MO//2PF Attenuation ratio : x10, x100, x1000 Max. Ground voltage : 4KV CAT III Input impedance : 50O

Pintech PT-5208 Specification

Model PT-5208
Bandwidth(50O load-3Db) 100MHz
Input differential voltage(DC+AC peak to peak) 8KV
Input differential voltage AC/RMS 2800V
Attenuation ratio(Switchable) ×10. ×100. ×1000
Input impedance(Between Input) 20MO//2PF
Noise (Into 50O Load) =1mV rms
Accuracy =±2%
Max. Output =±4V
Input impedance 50O
Overload protection Any Range
Power supply 5V~12v
Dimension External DC 9V/300mA
