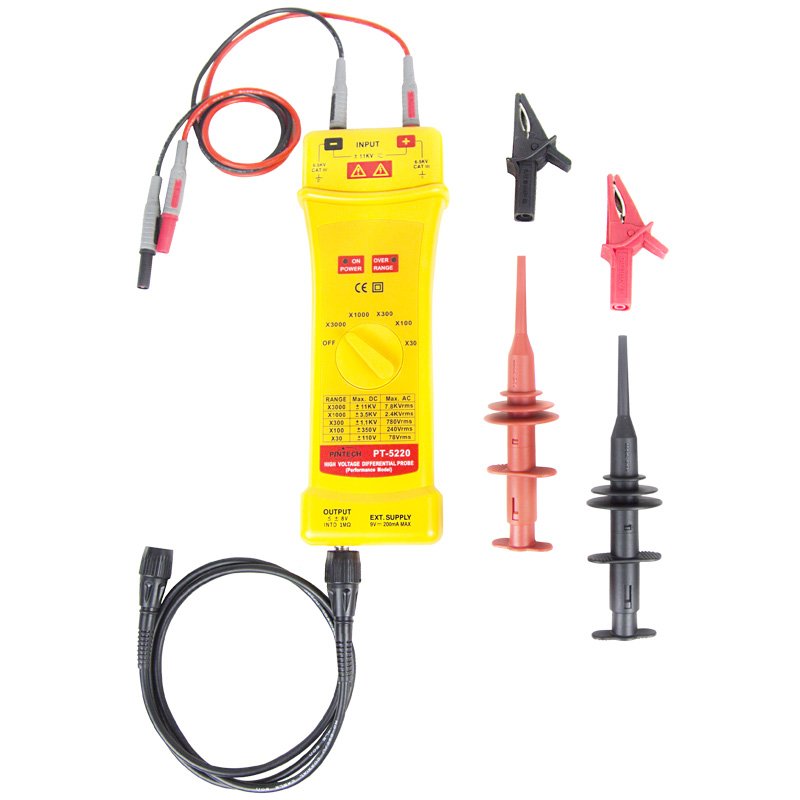

Pintech PT-5220 (22KVp-p,120MHz) differential probe

Pintech PT-5220



PT-5220 high voltage differential probe Range : 30mV ~ 22KV,Max. 11KV DC,22KVp-p AC Bandwidth : 120MHz Attenuation ratio : × 30,× 100,× 300,× 1000,× 3000 Input Impedance (Between Input) : 100MO // 1PF

Pintech PT-5220 Specification

PT-5220 FUNCTION
Differential Voltage(Vp-p) 22KV
Bandwidth (50O load -3dB) 120MHz(×100 ×300 ×1000 ×3000)60MHz(×30)
Common Mode Voltage(Vp-p) 22KV
Common Mode Voltage AC/RMS 7.8KV
Range(Switchable) 5(×30, ×100, ×300×,1000×,3000)
Input Impedance (Between Input) 100MO // 1PF
Each Input R//C 50MO // 2PF
Common Mode Rejection Ratio(CMRR) 60Hz>10000:1
100Hz>1000:1
1MHz>300:1
Noise(Into 50O Load) ?1m Vrms
Accuracy ?±2%
Maximum Output Voltage ?±5V
Output Impedance 50O
Input Over Range Indicate Any range , Input Voltage Exceed the Max. Voltage 90%
Power Auto Regulation System DC 6~12 V
Power Source External DC 9V/300mA
Accessories BP-250,BP-276N,BP-286,BP-366,PX-502,ADP-110(or ADP-220)
