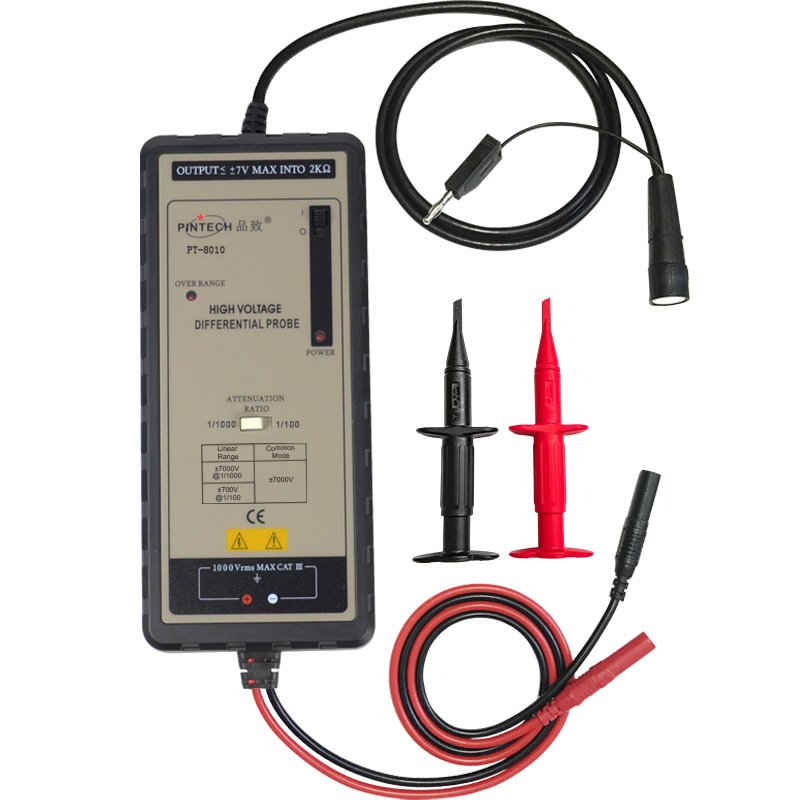

Pintech PT-8010 (7000Vp-p,70MHz) OEM differential probe

Pintech PT-8010



Bandwidth 70MHz Input Max.Voltage : 7000Vp-p AC, 3500V DC Bandwodth : 25MHz Attenuation ratio : X100 ,X1000 Power supply : battery and power adaptor Accuracy : 2% Compatible with any oscilloscope,standard BNC interface.

Pintech PT-8010 Specification

Specifications
Model PT-8010
Bandwidth 70MHz
Input Max. Voltage(Vp-p) 7000V
Attenuation 1:100/1000
Accuracy ±2%
Input Impedance 10MO//2pF each side to ground
Swing(into 50kO load) ±7v
Offset(typical) <±5mV
Noise (typical) 0.9mVrms
Source Impedance(typical) 50O
Features:
1.Up to7000V((Vp-p))Differential
2.Bandwidth up to 70MHz
3. Safety Certificate
4.Overrange Indicator
