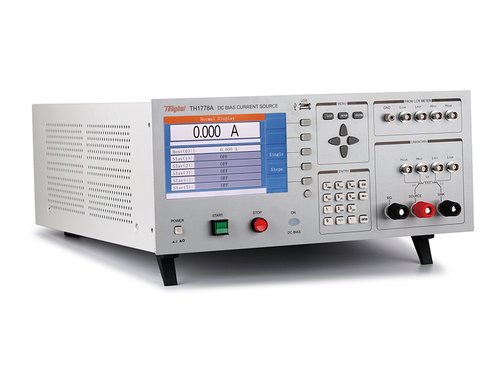

Tonghui TH1778 Series DC Bias Current Source

Tonghui TH1778 Series

Tonghui TH1778 Series Datasheet

Tonghui TH1778 Series Features

  • Provide 0~20A of constant current output for single one
  • Extreme refined current step: when <1A, reach 5mA; when <5A, reach 25mA; when <20A, reach 100mA
  • Adopting a new generation AC/DC superposition test theory to adapt test requirements for high precision and high frequency
  • Current output mode: single current, step scan
  • Providing real-time operation mode for all parameters and settings without waiting
  • New file management system with easy, prompt and accurate operation
  • Providing two kinds of SCPI command modes with good adaptability
  • New foot control mode with 5 control modes

Brief Introduction

The instrument adopts a new generation AC/DC superposition test theory to adapt test requirements for high precision and high frequency.The built-in embedded MCU with high- performance can quickly respond to host and slave machine condition or malfunction and make real time indication, which helps improve the work efficiency. The new designed friendly graphical operation interface, included 5 foot control modes and full touch operation provides convenience and efficiency for users. New file management system with easy, prompt and accurate operation can save a group of real-time setting file and 99 groups of user-defined setting files. It can provide pushed information indication and cache 2 real-time information. Being provided with two modes of SCPI instruction systems, it is convenient to set up production lines or single machine test. Also, it can connects with any device with serial port and which refer to the SCPI instruction system design of this machine.
New Trend of AC/DC Superposition Test By virtue of profound technology and extensive market survey in bias current field, Tonghui introduced the large power DC bias current source— TH1778A. CortexM3 ARM CPU with high-performance, graphical interfaces and full-touch operation make TH1778A series DC Bias Current Source convenient and efficient for you.
