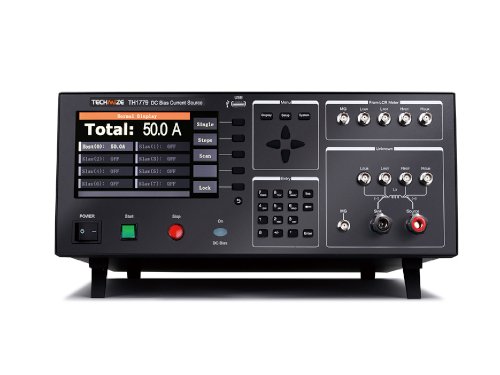

Tonghui TH1779 DC Bias Current Source Master, Current: 0-50A (Max 400A)
Tonghui TH1779 Datasheet
|
Tonghui TH1779 Features
- Single 0-50A constant current output, can be used as a host or a slave
- Support up to 8 sets of on-line, maximum 400A constant current output
- Master/slave control mode, flexible cutability and expandability
- Precise current stepping
- 1Hz-2MHz frequency response
- Single current, step scanning two current output modes
- Graphical operation, Chinese and English interface
- Two SCPI command modes, strong adaptability
|
|
Application
Inductor/reactor DC characteristics analysis
Iron core / ferrite material saturation characteristics analysis
DC characteristics analysis of other materials
|
|
