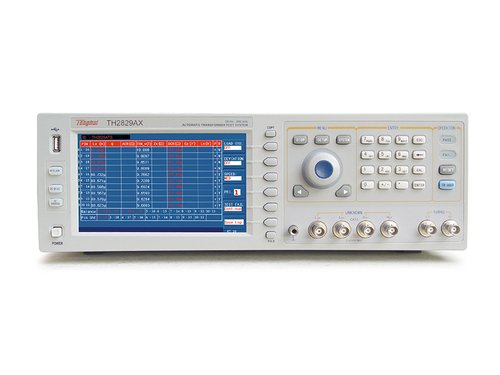

Tonghui TH2829X Series Automatic Transformer Test system

Tonghui TH2829X Series

Tonghui TH2829X Series Datasheet

Tonghui TH2829X Series Features

  • 7-inch TFT LCD display with a resolution of 800×RGB×480
  • Frequency up to 1MHz, resolution: 0.5mHz
  • Signal level: 5mV-2Vrms, optional (2Vrms-10Vrms)
  • Built-in 0-100mA/0-10V bias power supply, optional 1A/2A bias current source
  • Up to 75 times / sec test speed
  • Diode forward and reverse characteristic detection
  • Improved high turns ratio and weakly coupled transformer test capability
  • Improved DCR testing capabilities

Applications

Switching transformer scanning test, comprehensive characteristics analysis

Network transformer scanning test, comprehensive characteristics analysis

Discrete passive components (L, R, C) multi-channel scanning test

Relay drive line package, contact resistance multi-channel scanning test

Multi-channel DC resistance DCR scanning test

Comprehensive test analysis of multiple passive components in impedance network
