Tonghui TH2838 Series Datasheet
|
Tonghui TH2838 Series Features
- Test frequency: 20Hz-2MHz
- High accuracy:Adopt Auto-balance bridge technology, 4-terminal pair
- High stability and consistency:Up to 15 ranges
- High speed:Up to 5.6ms
- High resolution:7- inch, 800×600
- 201 Points List Sweep Function
- Multi-parameter Graphic Sweep Function
- 10 bins sorting, sorting result with sound and light alarm
|
|
Brief Introduction

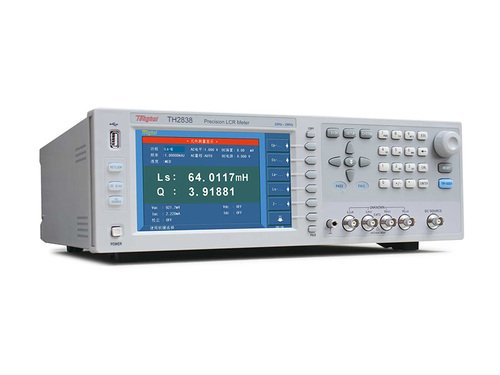

TH2838/TH2838H/TH2838A is a new generation impedance tester adopting the most advanced auto balance bridge theory in the world at present. With its 0.05% basic accuracy, speed up to 5.6ms, 20Hz-2MHz frequency range and impedance test range up to 1GO, this new impedance tester can meet all test demands of components and materials, especially for testing capacitor with low D and inductor with high Q. Four-terminal pair configuration can eliminate the effect of electromagnetic coupling in test cable, to extend the low limit of low impedance test 10 times than those testers with Five-pair configuration.
TH2838/TH2838H/TH2838A supports 20V AC test signal and 40V DC Bias, new-added improved multi parameter list sweep/graphic analyze will help customers to extend the comprehensive evaluation ability on components.
TH2838/TH2838H/TH2838A can realize various tests of commercial standards and military standards, such as IEC and MIL.
|
