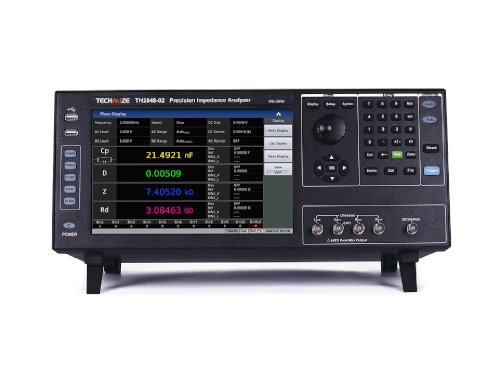

Tonghui TH2848 Series Datasheet
|
Tonghui TH2848 Series Features
- Frequency 4Hz-10MHz
- Basic Accuracy: 0.05%
- Auto Balance Bridge Technology
- Spot measurement, list sweep and graphic sweep
- AC Signal: 20V/100mA DC Bias: 0+/-40V, 0+/-100mA
- High resolution: 10.1 inches, resolution 1280*800,capacitive touch screen
- High precision: automatic balanced bridge technology, four-end pair test configuration
|
|
Applications
Passive component: Evaluation of impedance parameters and performance analysis of capacitors, inductors, cores, resistors, piezoelectric devices, transformers, chip assemblies, crystals, and network components.
Semiconductor component:Parasitic parameter testing and analysis of LED driver integrated circuits; C-VDC characterization of varactor diodes; parasitic parameter analysis of transistors or integrated circuits
Other components:Impedance evaluation of printed circuit boards, relays, switches, cables, batteries, etc.
Medium Material:Evaluation of dielectric constants and loss angles of plastics, ceramics and other materials.
Magnetic materials: Evaluation of permeability and loss angle of ferrites, amorphous and other magnetic materials
Semiconductor materials :Dielectric constant, electrical conductivity and C-V properties of semiconductor materials
Liquid crystal materialsC-V characteristics such as dielectric constant and elasticity constant of liquid crystal units
|
