Picotest J2160A Features

• Low noise, compact adapter with internal 6dB port splitter
• Supports 2-port shunt-thru and ultra-low impedance measurement
• Rugged, comfortable, ergonomic design; slim form factor
• Two semi-floating ports
• Easy to attach and detach
• Neater connections consume less bench space

Introduction

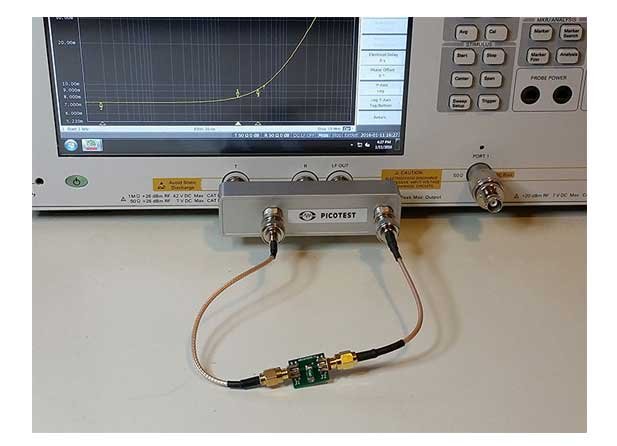

The Picotest J2160A Probe Adapter provides a low noise, compact solution when using the E5061B T/R ports in a 2-port shunt thru measurement. The T/R ports are desirable for low frequency 2-port measurements, since these ports are semi-floating, allowing low impedance measurements without the use of a coaxial common mode transformer such as the J2102A. The floating ports allow milliohm measurements even at very low frequency and up to the 30MHz range of the T/R ports.
