PicoScope 4000A Series High-resolution deep-memory oscilloscopes

Pico Tech PicoScope 4000A

PicoScope 4000A Series Datasheet

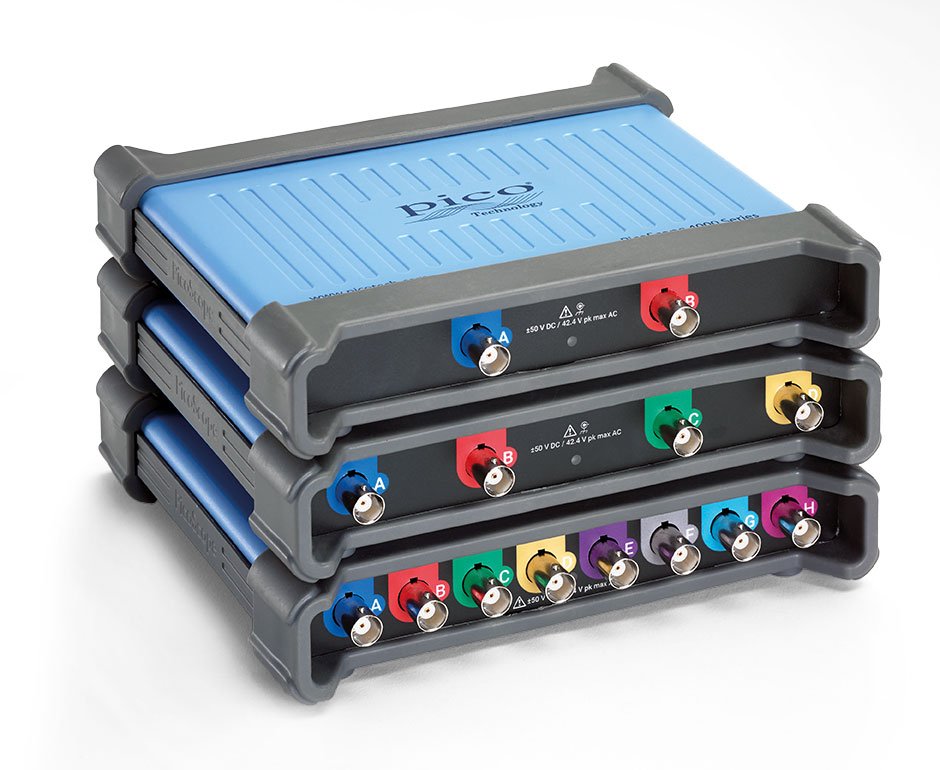

The PicoScope 4000A Series of PC oscilloscopes is a second-generation upgrade and expansion of our high-resolution, deep-memory product portfolio

With 2-, 4- and 8-channel models available, the PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256 MS deep capture memory, 20 MHz bandwidth with 80 MS/s sampling speed, up to 70 dB SFDR and a built-in 14-bit triggerable signal generator and 80 MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160 MS/s communications to the host PC.
All models run with the popular PicoScope 6 user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.

PicoScope 4000A series comparision

Model No	Channel	Bandwidth	Sampling (real time)	Resolution	Buffer Memory	AWG	PC Connection
PicoScope 4224A	2	20 MHz	80 MS/s (up to four channels in use) 40 MS/s (five or more channels in use)	12 bit	256 MS	Yes	USB 3.0
PicoScope 4424A	4	20 MHz	80 MS/s (up to four channels in use) 40 MS/s (five or more channels in use)	12 bit	256 MS	Yes	USB 3.0
PicoScope 4824A	8	20 MHz	80 MS/s (up to four channels in use) 40 MS/s (five or more channels in use)	12 bit	256 MS	Yes	USB 3.0

Arbitrary waveform and function generator

Related Links
Pico Tech | USB Oscilloscope

(All trademarks acknowledged) E. & O. E.

Arbitrary waveform and function generators

All models in the PicoScope 4000A Series have a built-in low-distortion, 80 MS/s, 14-bit arbitrary waveform generator (AWG), which can be used to emulate missing sensor signals during product development, or to stress-test a design over the full intended operating range. Waveforms can be imported from data files or created and modified using the built-in graphical AWG editor.

PicoScope 4000A Series Features

2, 4 or 8 channels
20 MHz bandwidth
12-bit resolution
256 MS capture memory
80 MS/s sampling rate

Ask for PicoScope 4000A Series detailed specification.
